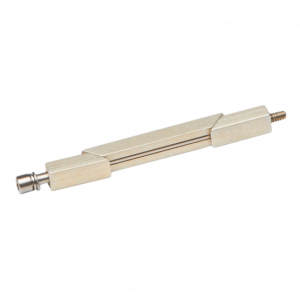

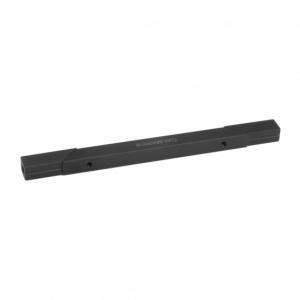

267HC High Clamp Force Card-Lok

nVent Schroff, The Series 267HC Card Lok also features a lighter weight, narrow profile ideal for retaining PCBs that are densely populated within the enclosure. The shafted design provides more uniform clamping force over the length of the Card Lok, while maintaining wedge and body alignment for easier installation. 5 segment, shafted design Screw actuated Max expansion 5.99 mm Length 96.5 mm to 172.7 mm, 12.7 mm increments Average clamp force (4.80", black anodized) = 1025 lbs Flexible mounting options Profile 6.35 mm x 5.00 mm Weight 0.75 g/cm Available with black anodized, hard black anodized, or electroless nickel plating For cold wall applications
