PSU 19" AC/DC Maxpower 180 W, Single, MAX 112
kr 6 372,00
Varenr
13100-151

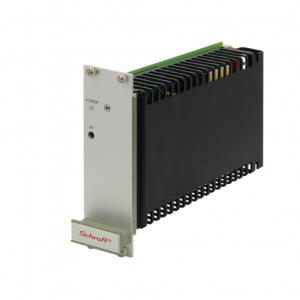

nVent Schroff, PSU 19" AC/DC Maxpower 180 W, Single, MAX 112 Wide input voltage range 90 ... 254 VAC and 100 ... 360 VDC with active Power Factor Correction (PFC) 1 output voltage Signalling: Output voltage OK Efficiency up to 87 % Integrated active decoupling for redundancy operation Active Current Share Bus (CSB) Product Type: Power Supply Type: 19" Switched-Mode Input Voltage AC: 90 – 264 V Power: 156 W Number of Output Voltages: 1 Voltage 1: 12 V Current 1: 13 A Rack Height: 3 U Rack Width: 8 HP Pluggable 19" Power Supplies with H15 connector for fanless applications. With wide range AC input and one output voltage. Please order front panel separately. Output data for mains voltage > 190 VAC, TA = 0 ... 50 °C.
Utvidet informasjon
Vekt i kg 0.8600
Opprinnelsesland Tyskland
Fabrikat Schroff
Normal leveringstid 3-4 uker
Høyde i U 3
Toll nr. 4036088048456
UNSPSC 30211501
Datablad click here
Produktets hjemmeside click here
Produsent art.nr 13100-151
