VPX SYST.3/4U 44HP 275D 5SL

VPX SYST.3/4U 44HP 275D 5SL

SUBR 2U 277D 4SL VME64X P0, 20836-245

SUBR 2U 277D 4SL VME64X P0, 20836-245

VPX SYST.3/4U 44HP RIO 5SL

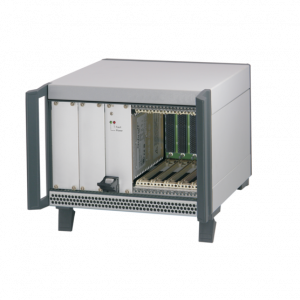

VPX System, Desktop, 4 U, 5 Slot, Pluggable PSU, With Rear I/O
kr 49 141,08
Varenr
20836-447
VPX System, Desktop, 4 U, 5 Slot, Pluggable PSU, With Rear I/O Backplane conforms to VITA 46 Other VPX backplanes on requestSystem in accordance with IEC 60297‐3‐101, ‐102, ‐103; IEEE 1101.1, 1101.10/11; backplane in accordance with VITA 1.1‐1994 PSU pluggable, 250 W, 3 U, 8 HP (further PSU optional) VPX backplane, in accordance with VITA 46, 5 slot, 3 U, 0.8" pitch, full mesh topology Heat dissipation by 2 radial fans , front to rear side cooling Type: Desktop Backplane Type: VPX Full Mesh Data Transfer: 10 GbE Power per Slot: 30 W Input Voltage AC: 100 – 240 V Airflow Direction: Front to Rear Rack Height: 4 U Power Supply Type: (1) Pluggable PSU Power Supply Included: Yes Rear I/O: Yes Complies With: ANSI/VITA 46.0-2019 Depth: 275 mm Height: 177 mm
Utvidet informasjon
Vekt i kg 8.6000
Opprinnelsesland
Fabrikat Schroff
Normal leveringstid Kontakt oss for leveringstid
Høyde i U 4
Høyde i mm 177
Dybde i mm 275
Datablad click here
Produktets hjemmeside click here
Produsent art.nr 20836-447
