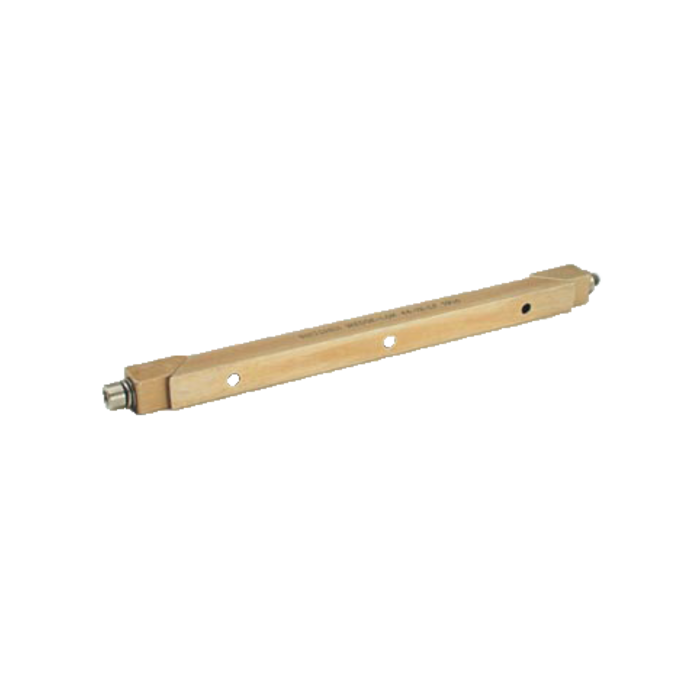

40 Wedge-Lok
kr 276,24
art.nr
40VI-4-LF-LN-L
40 Wedge-Lok- example
nVent Schroff, Economical Card Lok designed for PCB retention and thermal transfer within cold wall applications.
3 segment, non-shafted design
Screw actuated
Flexible mounting options
Length 50.8 mm to 304.8 mm, 12.7 mm increments
Weight 1.07 g/cm
Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating
DSCC 84103 / DSCC CID 59590
Profile 5.72 mm x 6.60 mm
Max expansion 8.38 mm
For cold wall applications
Average clamp force (5", black anodized) = 272 lbs
