RATIOPAC PRO AIR HF 3/4U 63HP315D
kr 4 908,00
art.nr
24572-077
RATIOPAC PRO AIR HF 3/4U 63HP315D kan kjøpes i antall av 1

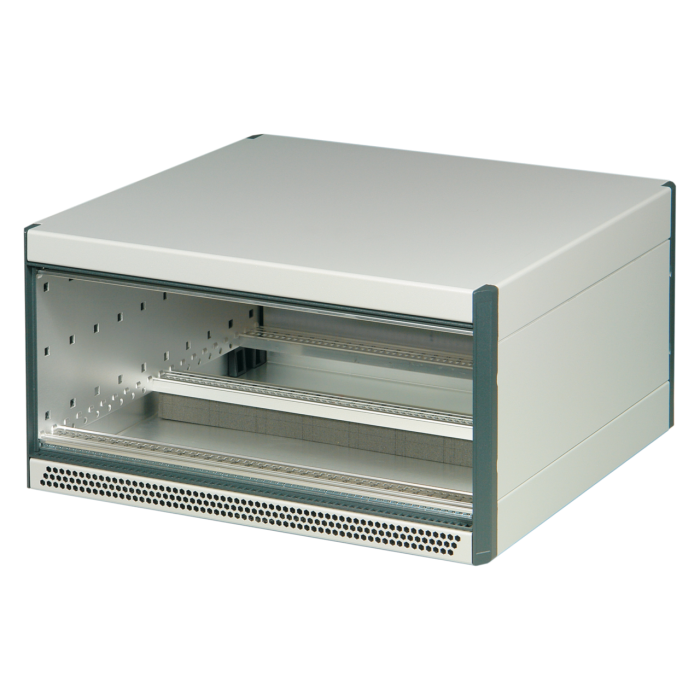

RatiopacPRO AIR Complete Case, Desktop, Shielded, Front Trim, 3/4 U, 63 HP, 315 mm
nVent Schroff, RAT.PRO AIR HF 3/4U 63HP315D, RatiopacPRO AIR Complete Case, Desktop, Shielded, Front Trim, 3/4 U, 63 HP, 315 mm, Flexible and robust desktop enclosure with EMC shielding for 19“ components and is available with advanced cooling., Desktop case pre-configured in accordance with IEC 60297-3-101, for euroboards and backplane with insulation strip, Shielded, Version with cover strips, no visible screws, Case with integrated ventilation (2 x 1/2 U), Symmetrical design, identical front and rear, Honeycomb grid ventilation in top cover and base plate, For board depth 160 mm, 220 mm, 280 mm, and 340 mm (depending on case depth), Conforms with DIN EN 62368-1
| art.nr | 24572-077 |
|---|---|
| Vekt i kg | 3.330000 |
| Opprinnelsesland | Tyskland |
| Fabrikat | Schroff |
| Høyde i U | 4 |
| Bredde i mm | 342.4 |
| Høyde i mm | 177 |
| Dybde i mm | 315.5 |
| Toll nr. | 4036088033995 |
| UNSPSC | 30211502 |
| Produsent art.nr | 24572-077 |
| Static Load in kg | 25 |
| Complies with | IEC 60297-3-101 |
