RATIOPAC PRO 19"2U 84HP 495D
kr 2 964,00
art.nr
24572-576
RATIOPAC PRO 19"2U 84HP 495D kan kjøpes i antall av 1

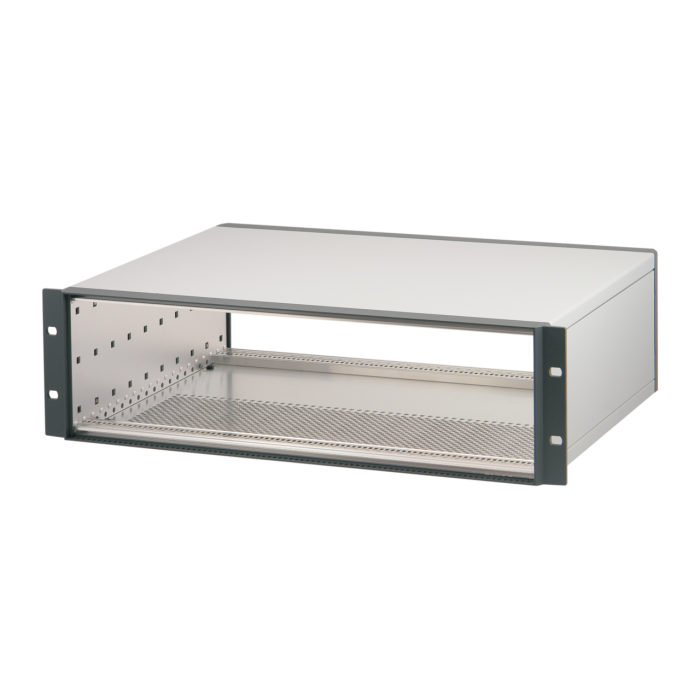

RatiopacPRO 19" Rack Mount Case, Unshielded, 2 U, 84 HP, 495 mm
nVent Schroff, RATIOPAC PRO 19"2U 84HP 495D, RatiopacPRO 19" Rack Mount Case, Unshielded, 2 U, 84 HP, 495 mm, Flexible and robust enclosure for 19“ components or individual electronics assemblies., Cases for individual assembly with 19" standard components or specific internal mounting, e.g. with mounting plate, Designed for insertion/extractor handles in accordance with IEC 60297‐3‐102 and IEEE 1101.10 for CompactPCI and VME64x applications, Retrofittable EMC shielding, Version with 19" mounting brackets, For board depth 160 mm, 220 mm, 280 mm, and 340 mm (depending on case depth), Symmetrical design, identical front and rear side, No visible screws; cladding parts removable without tools, Conforms with DIN EN 62368-1
| art.nr | 24572-576 |
|---|---|
| Vekt i kg | 3.120000 |
| Opprinnelsesland | Tyskland |
| Fabrikat | Schroff |
| Høyde i U | 2 |
| Bredde i mm | 448.9 |
| Høyde i mm | 88.1 |
| Dybde i mm | 495.5 |
| Toll nr. | 4036088034954 |
| UNSPSC | 30211502 |
| Produsent art.nr | 24572-576 |
| Static Load in kg | 25 |
| Complies with | IEC 60297-3-101 |
| Farge | Light Grey |
